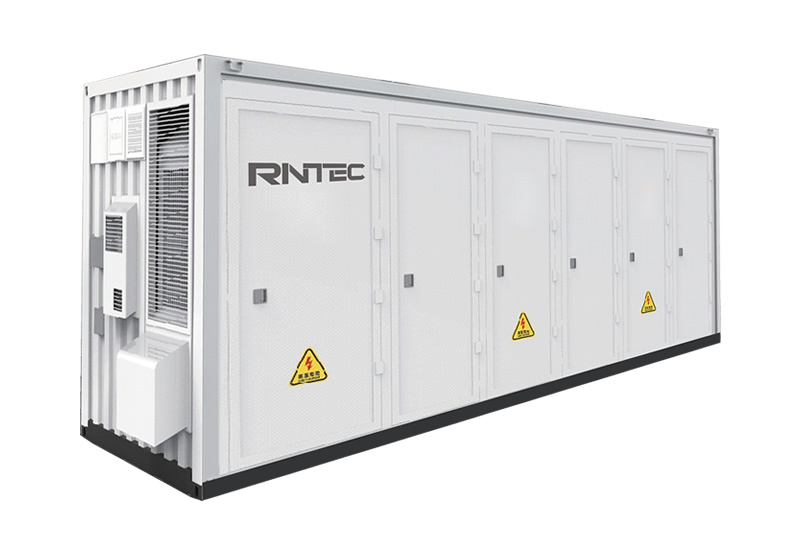

Product Introduction
Product Parameters
| Specification | Parameter |
| Rated Capacity | LFP100A |
| DC side rated voltage | 1126.4V |
| Maximum charge and discharge rate | 0.5C/25C |
| DC side rated capacity | 2.7MWh |
| DC charge and discharge efficiency | 93%-95% |
| Battery Type | Lithium iron phosphate battery cell |
| FireFighting System | He pta fluoro ethane per fluoro hexa none |
| Temperature control method | forced air cooling |
| Certi ication standards | GB/T 36276\UL 1973、、、UL9540A、、、UN 38.3、、、IEC 62619、、、IEC 62477、、、IEC 61000、、、IEC60730AnnexH、、、IEC 62933 |
| Weight | 32t |
| Box dimensions(W*H*D) | 6058mmx2438mmx2896mm |
| Box protection level | IP54 |
| Range of working temperature | -20-55℃ |
| Communication Interface | CAN、、、RS 485、、、Ethernet |
| Protocol | CAN ，， Modbus RTU ，， Modus TCP/IP |
